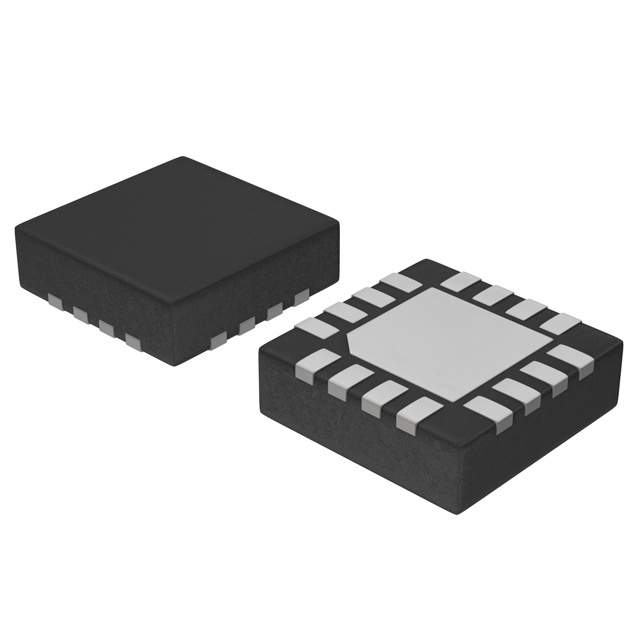

Image is for reference only , See Product Specifications
PI3A268CZMEX
| Manufacturers: | Diodes Incorporated |
|---|---|
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Data Sheet: | PI3A268CZMEX |
| Description: | IC SWITCH DUAL SPDT 10UQFN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - |
| Crosstalk | -80dB @ 100kHz |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| -3db Bandwidth | 85MHz |
| Package / Case | 10-UFQFN |
| Switch Circuit | SPDT |
| Charge Injection | 52pC |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 10-UQFN (1.8x1.4) |
| On-State Resistance (Max) | 400mOhm (Typ) |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Channel Capacitance (CS(off), CD(off)) | 21pF |
In Stock 2360 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.19 | $1.17 | $1.14 |
