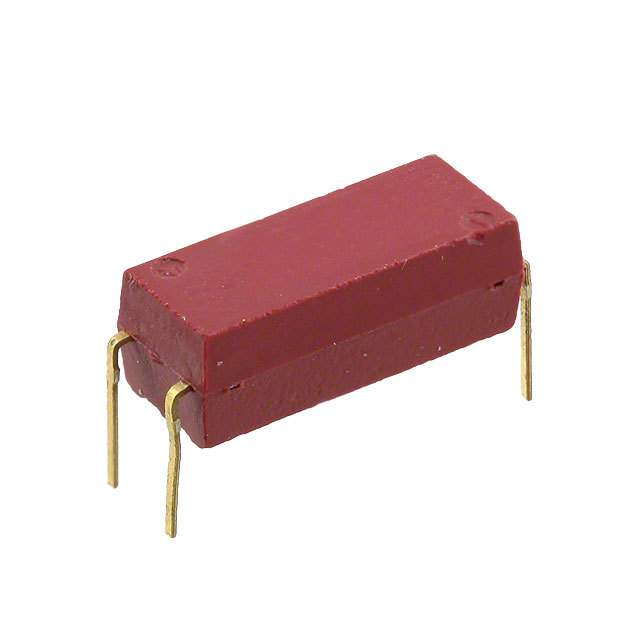

Image is for reference only , See Product Specifications
9901-05-10
| Manufacturers: | Coto Technology |
|---|---|
| Product Category: | Reed Relays |
| Data Sheet: | 9901-05-10 |
| Description: | RELAY REED SPST 250MA 5V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Coto Technology |
| Product Category | Reed Relays |
| Series | 9900 |
| Features | EMI Shielded |
| Coil Type | Non Latching |
| Packaging | Tube |
| Part Status | Obsolete |
| Seal Rating | - |
| Coil Current | 33.3mA |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 0.25ms |
| Release Time | 0.05ms |
| Mounting Type | Surface Mount |
| Coil Resistance | 150 Ohms |
| Contact Material | - |
| Switching Voltage | 100VAC, 100VDC - Max |
| Termination Style | Axial |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operating Temperature | -20°C ~ 85°C |
| Contact Rating (Current) | 250mA |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
