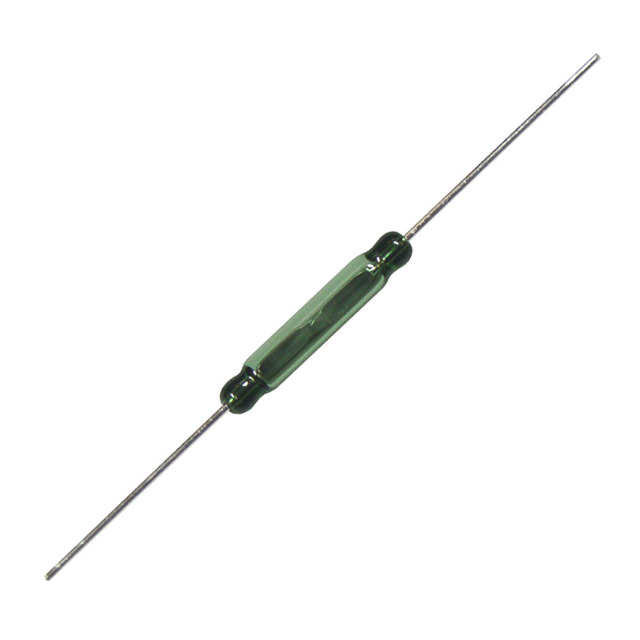

Image is for reference only , See Product Specifications
RI70GP0715
| Manufacturers: | Comus International |
|---|---|
| Product Category: | Magnetic, Reed Switches |
| Data Sheet: | RI70GP0715 |
| Description: | SWITCH REED SPST-NO 500MA 120V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Comus International |
| Product Category | Magnetic, Reed Switches |
| Type | Glass Body |
| Series | RI-70 |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Capacitance | 0.35pF |
| Part Status | Obsolete |
| Size - Body | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Operate Time | 0.15ms |
| Release Time | 0.03ms |
| Mounting Type | Through Hole |
| Operate Range | 7 ~ 15AT |
| Power - Rated | 10W |
| Release Range | 3 ~ 16AT |
| Current - Carry | 400mA (AC/DC) |
| Length - Overall | 1.811" (46.00mm) |
| Termination Style | Axial |
| Height Above Board | - |
| Current - Switching | 500mA (AC/DC) |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Switching AC | 120V |
| Voltage - Switching DC | 170V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
