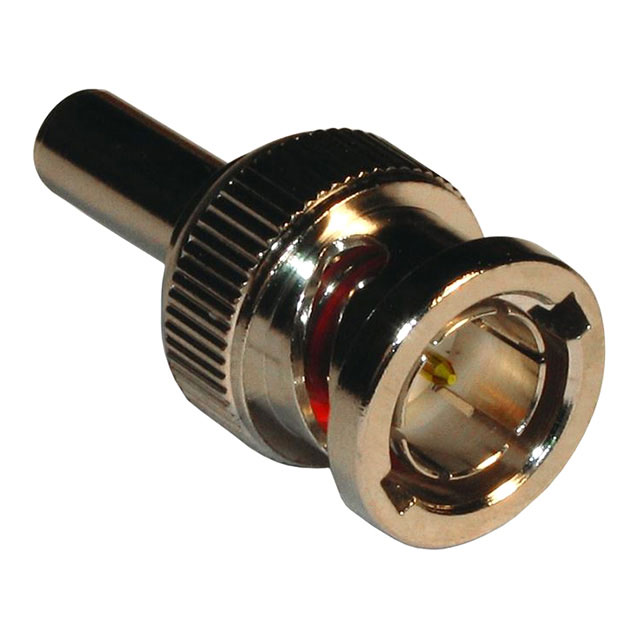

Image is for reference only , See Product Specifications
UPL220-020
| Manufacturers: | Cinch Connectivity Solutions Trompeter |
|---|---|
| Product Category: | Coaxial Connectors (RF) |
| Data Sheet: | UPL220-020 |
| Description: | CONN BNC PLUG STR 75 OHM CRIMP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Cinch Connectivity Solutions Trompeter |
| Product Category | Coaxial Connectors (RF) |
| Series | 220 |
| Features | - |
| Includes | 2 pcs - 1 Connector, 1 Contact |
| Impedance | 75Ohm |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | Belden 9248 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Voltage Rating | 500V |
| Connector Style | BNC |
| Frequency - Max | 4GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
In Stock 25 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.97 | $5.85 | $5.73 |
