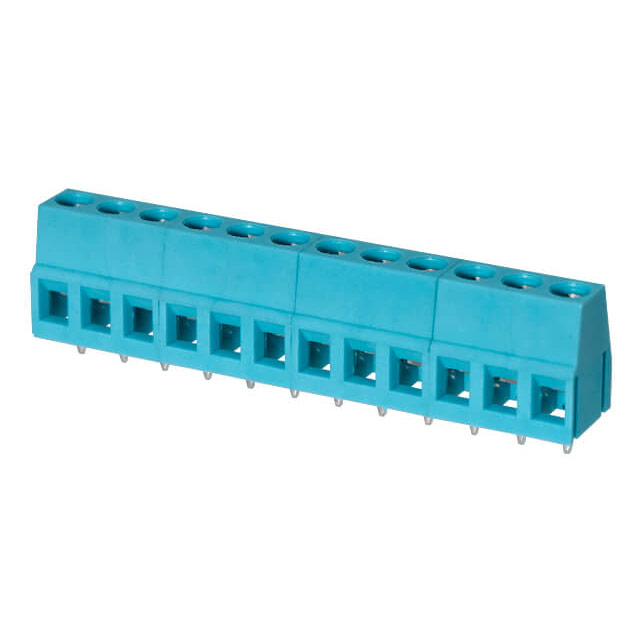

Image is for reference only , See Product Specifications
TB010-508-08BE
| Manufacturers: | CUI, Inc. |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | TB010-508-08BE |
| Description: | TERMINAL BLOCK, SCREW TYPE, 5.08 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | CUI, Inc. |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Blue |
| Pitch | 0.200" (5.08mm) |
| Series | TB010-508 |
| Current | 20A |
| Voltage | 300V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 12-26 AWG |
| Part Status | Active |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Number of Levels | 1 |
| Wire Termination | Screw - Rising Cage Clamp |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Positions Per Level | 8 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Screw Material - Plating | Steel - Zinc Plated |
| Contact Material - Plating | Copper Alloy - Tin Plated |
In Stock 840 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.08 | $2.04 | $2.00 |
Request Quote
