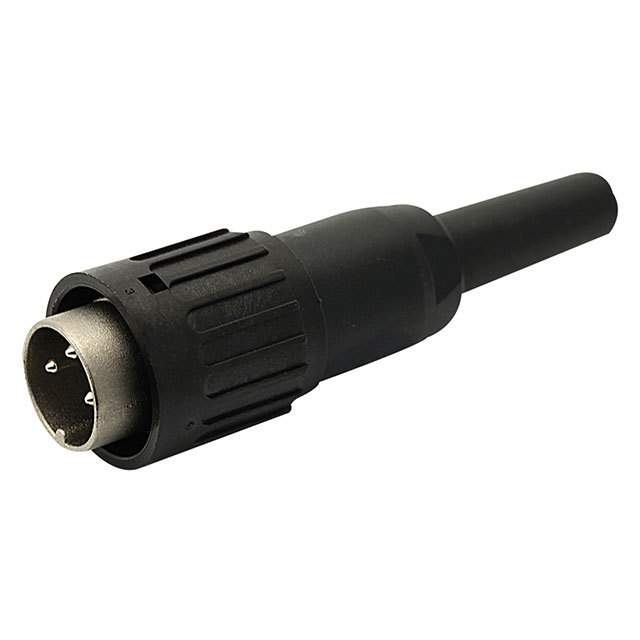

Image is for reference only , See Product Specifications
42-00012
| Manufacturers: | CONEC |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | 42-00012 |
| Description: | CONN PLUG FMALE 4POS GOLD SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | CONEC |
| Product Category | Circular Connectors |
| Color | Black, Silver |
| Series | 42 |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | A |
| Part Status | Active |
| Termination | Screw |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.157" ~ 0.217" (4.00mm ~ 5.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Copper Zinc |
| Voltage Rating | 30V |
| Insert Material | Polyamide (PA6), Nylon 6, Glass Filled |
| Shell Size, MIL | - |
| Contact Material | Copper Zinc |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 4 |
| Shell Size - Insert | M8-4 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -30°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA6), Nylon 6, Glass Filled |
| Material Flammability Rating | UL94 |
| Contact Finish Thickness - Mating | - |
In Stock 39 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $11.26 | $11.03 | $10.81 |
