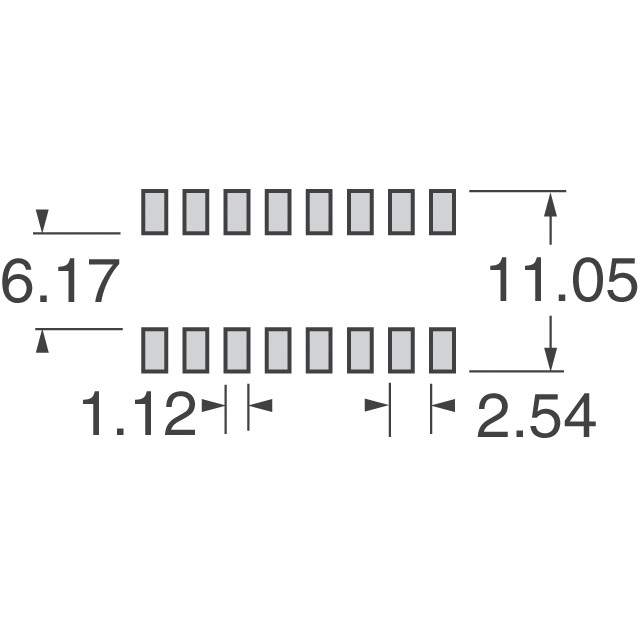

Image is for reference only , See Product Specifications
SD03H1SB
| Manufacturers: | C&K |
|---|---|
| Product Category: | DIP Switches |
| Data Sheet: | SD03H1SB |
| Description: | SWITCH SLIDE DIP SPST 100MA 25V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | C&K |
| Product Category | DIP Switches |
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.358" (9.09mm) |
| Series | SD |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphthalamide (PPA) |
| Mounting Type | Surface Mount |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 25VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Beryllium Copper |
| Termination Style | Gull Wing |
| Height Above Board | 0.180" (4.57mm) |
| Number of Positions | 3 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.86 | $1.82 | $1.79 |
Request Quote
