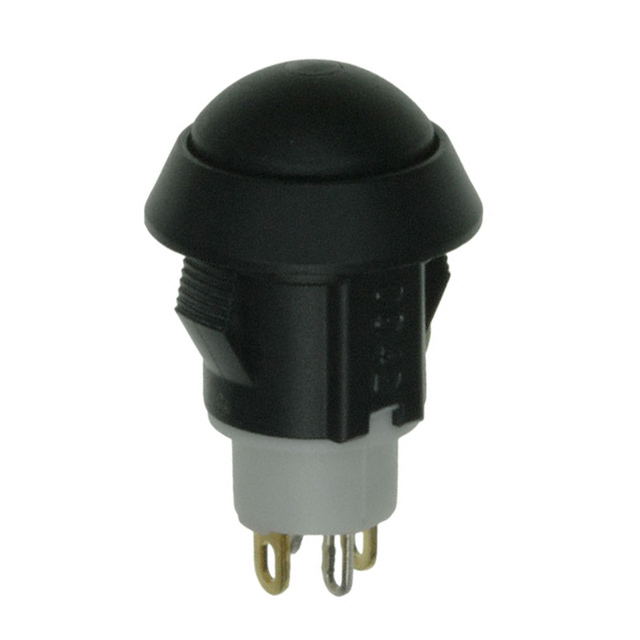

Image is for reference only , See Product Specifications
AP4D206TZBE
| Manufacturers: | C&K |
|---|---|
| Product Category: | Pushbutton Switches |
| Data Sheet: | AP4D206TZBE |
| Description: | SWITCH PUSH SPST-NO 0.125A 125V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | C&K |
| Product Category | Pushbutton Switches |
| Type | Standard, Illuminated |
| Series | AP |
| Circuit | SPST-NO |
| Features | - |
| Packaging | Tray |
| Part Status | Active |
| Actuator Type | Round, Button, Domed |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 1,000,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 24V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 125mA (AC), 200mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 13.80mm Dia |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2 VDC |
In Stock 625 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $14.69 | $14.40 | $14.11 |
