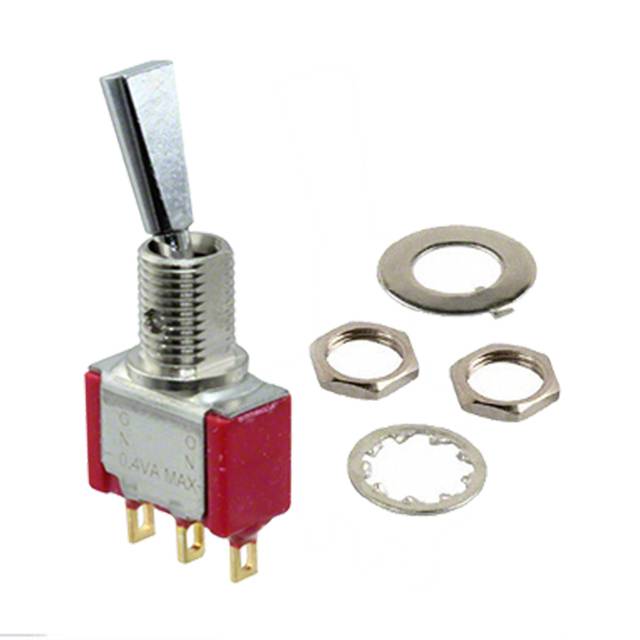

Image is for reference only , See Product Specifications
7103SYAV2BE
| Manufacturers: | C&K |
|---|---|
| Product Category: | Toggle Switches |
| Data Sheet: | 7103SYAV2BE |
| Description: | SWITCH TOGGLE SPDT 0.4VA 20V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | C&K |
| Product Category | Toggle Switches |
| Series | 7000 |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard Round |
| Mounting Type | Panel Mount, Right Angle, Vertical |
| Bushing Thread | 1/4-40 |
| Actuator Length | 10.67mm |
| Electrical Life | 40,000 Cycles |
| Switch Function | On-Off-On |
| Actuator Material | Brass, Chrome Plated |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Voltage Rating - AC | 20V |
| Voltage Rating - DC | 20V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
In Stock 13 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.07 | $6.93 | $6.79 |
