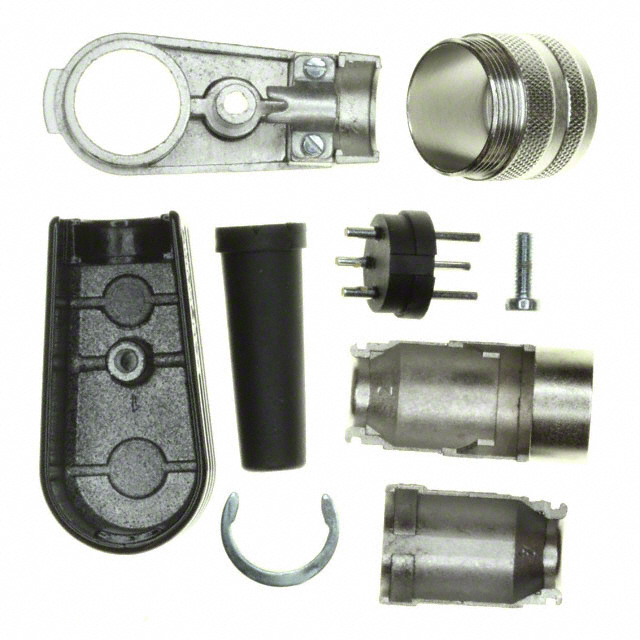

Image is for reference only , See Product Specifications
PXPPAM12FBF03ASTPG9
| Manufacturers: | Bulgin |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | PXPPAM12FBF03ASTPG9 |
| Description: | CONN PLUG FMALE 3POS GOLD SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bulgin |
| Product Category | Circular Connectors |
| Color | Black, Silver |
| Series | Buccaneer® M12 |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | - |
| Orientation | A |
| Part Status | Active |
| Termination | Screw |
| Applications | Industrial, Instrumentation, Medical |
| Shell Finish | Nickel |
| Cable Opening | 0.181" ~ 0.315" (4.60mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 250V |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Phosphor Bronze |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 3 |
| Shell Size - Insert | M12-3 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
In Stock 100 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $16.04 | $15.72 | $15.40 |
