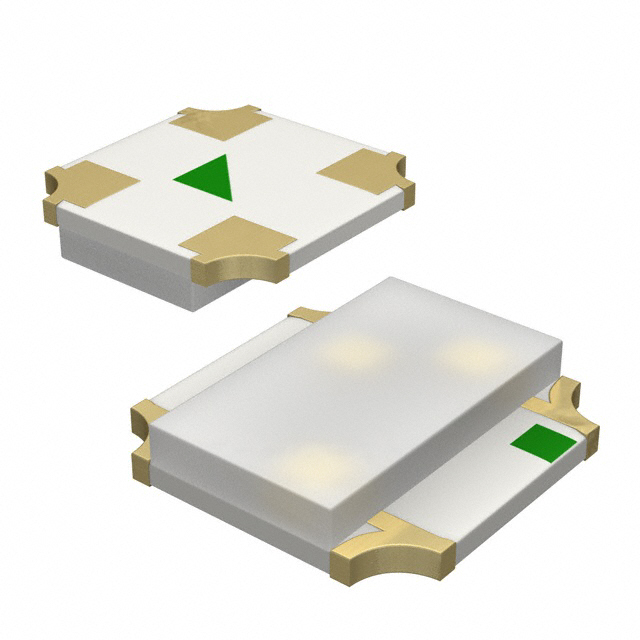

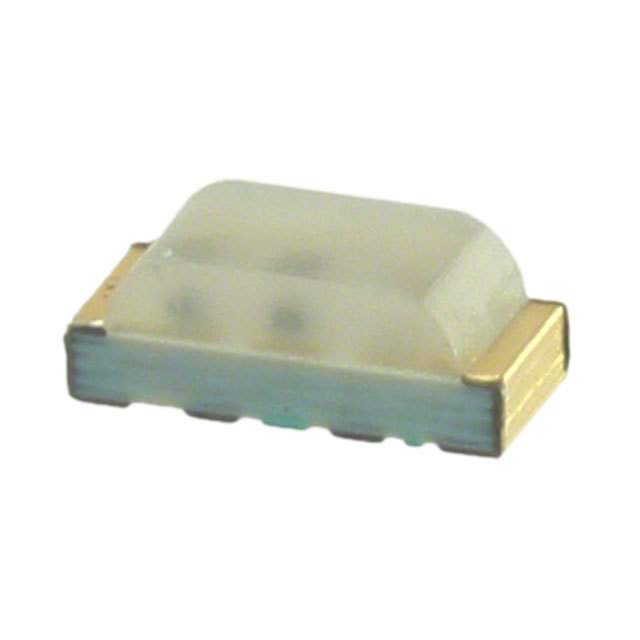

Image is for reference only , See Product Specifications
HSMF-C163
| Manufacturers: | Broadcom Limited |
|---|---|
| Product Category: | LED Indication - Discrete |
| Data Sheet: | HSMF-C163 |
| Description: | LED GREEN/RED DIFFUSED 0603 SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Broadcom Limited |
| Product Category | LED Indication - Discrete |
| Color | Green, Red |
| Series | - |
| Features | - |
| Lens Size | 1.60mm x 0.80mm |
| Packaging | Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.50mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 10mA Green, 20mA Red |
| Package / Case | 0603 (1608 Metric) |
| Base Part Number | HSMF-C16 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 523nm Green, 637nm Red |
| Millicandela Rating | 45mcd Green, 90mcd Red |
| Wavelength - Dominant | 525nm Green, 626nm Red |
| Supplier Device Package | 0603 |
| Voltage - Forward (Vf) (Typ) | 3.4V Green, 1.9V Red |
In Stock 10707 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
