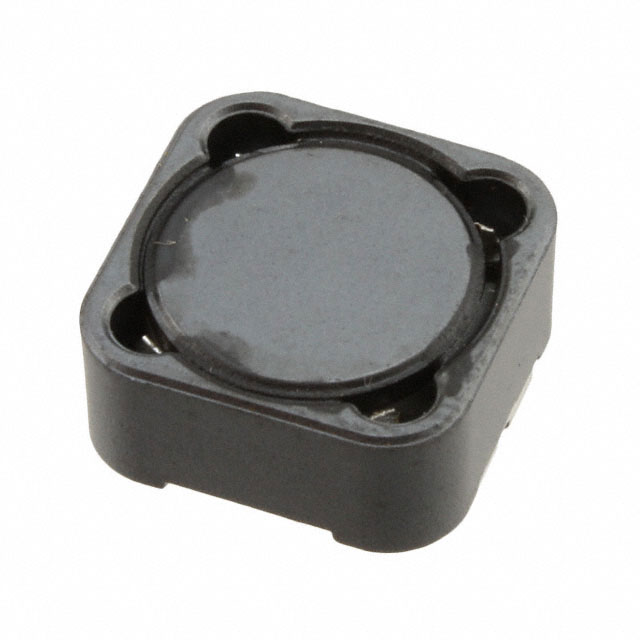

Image is for reference only , See Product Specifications
SRR1280-330M
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | SRR1280-330M |
| Description: | FIXED IND 33UH 3.5A 57 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | SRR1280 |
| Ratings | - |
| Q @ Freq | 28 @ 2.52MHz |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 33µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Base Part Number | SRR1280 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| DC Resistance (DCR) | 57mOhm Max |
| Current - Saturation | 3.3A |
| Current Rating (Amps) | 3.5A |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 9.5MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 7530 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
