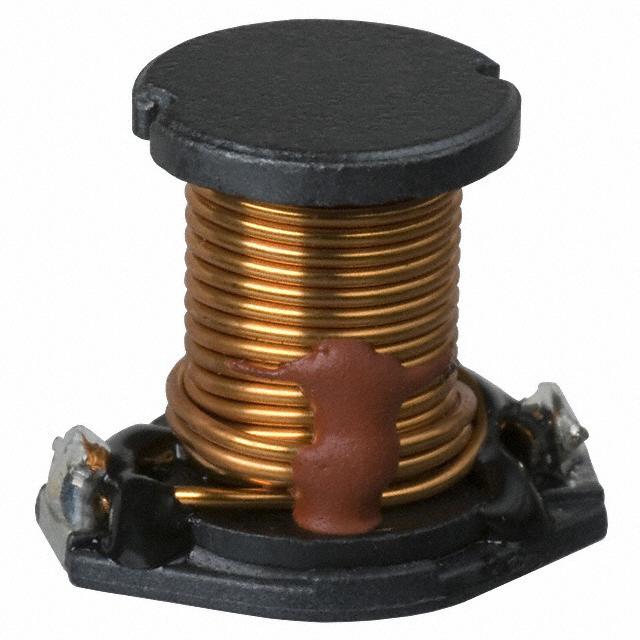

Image is for reference only , See Product Specifications
SRP1245A-R56M
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | SRP1245A-R56M |
| Description: | FIXED IND 560NH 36A 1.5 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | SRP1245A |
| Ratings | AEC-Q200 |
| Q @ Freq | 20 @ 100kHz |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 560nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Carbonyl Powder |
| Base Part Number | SRP1245A |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| DC Resistance (DCR) | 1.5mOhm Max |
| Current - Saturation | 55A |
| Current Rating (Amps) | 36A |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 60MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 28 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
