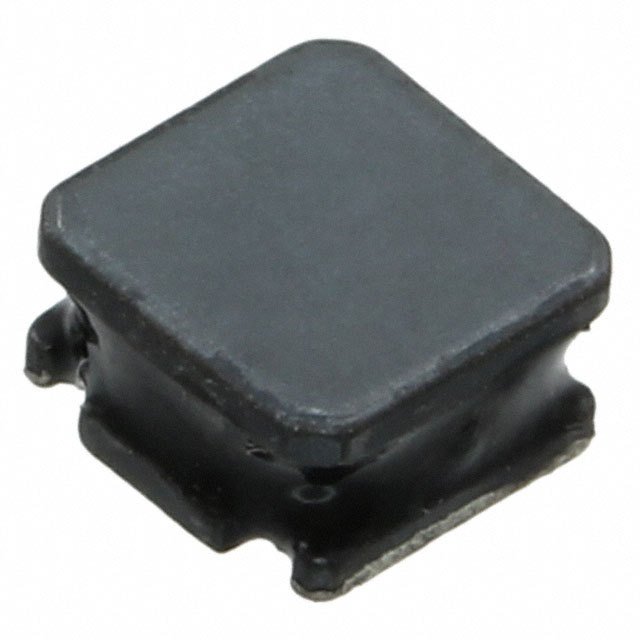

Image is for reference only , See Product Specifications
SRP1238A-R60M
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | SRP1238A-R60M |
| Description: | FIXED IND 600NH 29A 2.2 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | SRP1238A |
| Ratings | AEC-Q200 |
| Q @ Freq | 15 @ 100kHz |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 600nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Carbonyl Powder |
| Base Part Number | SRP1238A |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| DC Resistance (DCR) | 2.2mOhm Max |
| Current - Saturation | 51A |
| Current Rating (Amps) | 29A |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 53MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 27 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
