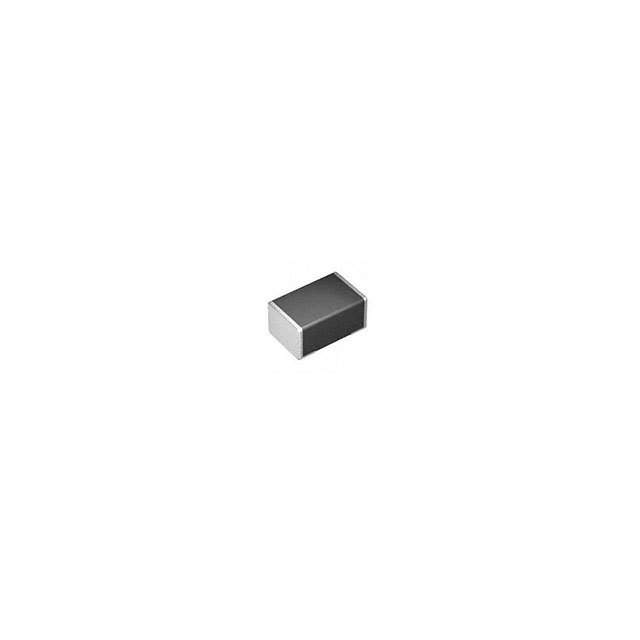

Image is for reference only , See Product Specifications
SRN2009T-R47M
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | SRN2009T-R47M |
| Description: | IND,2X1.6X0.95MM,0.47UH20%,2A,SH |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | SRN2009T |
| Ratings | - |
| Features | - |
| Q @ Freq | 25 @ 1MHz |
| Packaging | Cut Tape (CT) |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Inductance | 470nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Material - Core | Ferrite |
| Base Part Number | SRN2009T |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| DC Resistance (DCR) | 38mOhm |
| Current - Saturation | 2A |
| Current Rating (Amps) | 2A |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0806 (2016 Metric) |
| Frequency - Self Resonant | 300MHz |
| Inductance Frequency - Test | 1MHz |
In Stock 2000 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.39 | $0.38 | $0.37 |
