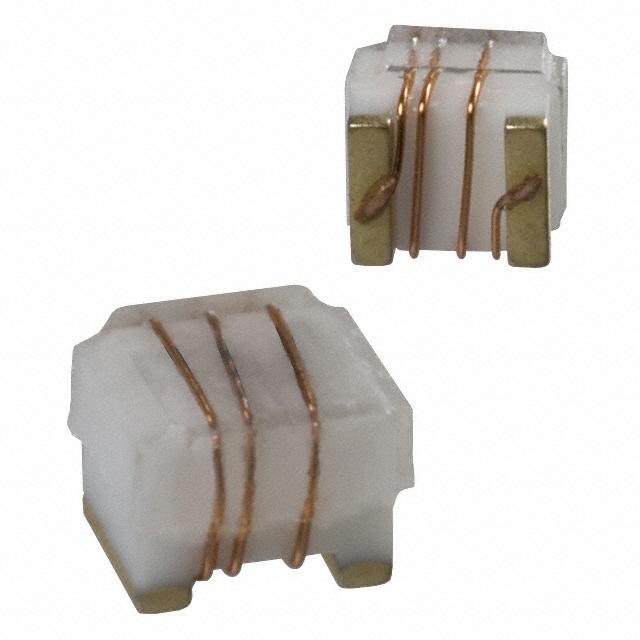

Image is for reference only , See Product Specifications
PM0805-R39K
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | PM0805-R39K |
| Description: | FIXED IND 390NH 200MA 1.5 OHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | PM0805 |
| Ratings | - |
| Q @ Freq | 40 @ 100MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 390nH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Material - Core | Ceramic |
| Base Part Number | PM0805 |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| DC Resistance (DCR) | 1.5Ohm Max |
| Current - Saturation | - |
| Current Rating (Amps) | 200mA |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 0805 (2012 Metric) |
| Frequency - Self Resonant | 700MHz |
| Inductance Frequency - Test | 100MHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
