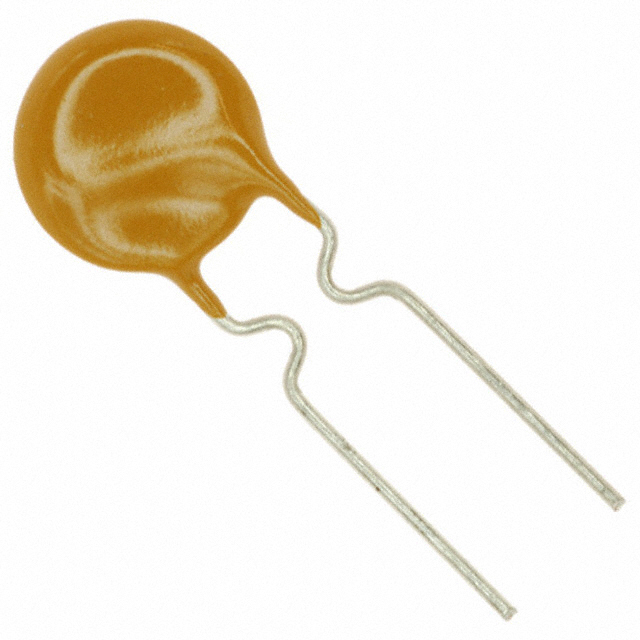

Image is for reference only , See Product Specifications
MF-RX185-2
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-RX185-2 |
| Description: | PTC RESET FUSE 60V 1.85A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-RX |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 12.6s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 60V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Base Part Number | MF-RX |
| Size / Dimension | 0.701" L x 0.122" W (17.80mm x 3.10mm) |
| Current - Trip (It) | 3.7A |
| Height - Seated (Max) | 0.902" (22.90mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 1.85A |
| Resistance - Initial (Ri) (Min) | 80 mOhms |
| Resistance - Post Trip (R1) (Max) | 190 mOhms |
In Stock 2563 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.84 | $0.82 | $0.81 |
Request Quote
