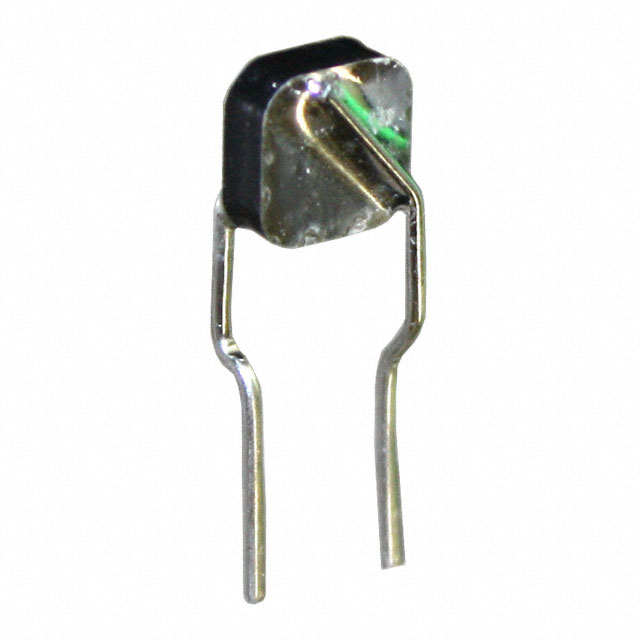

Image is for reference only , See Product Specifications
MF-RX110-2-99
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-RX110-2-99 |
| Description: | PTC RESET FUSE 60V 1.1A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-RX |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Tape & Reel (TR) |
| Part Status | Last Time Buy |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 8.2s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 60V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Base Part Number | MF-RX |
| Size / Dimension | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) |
| Current - Trip (It) | 2.2A |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 1.1A |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 380 mOhms |
