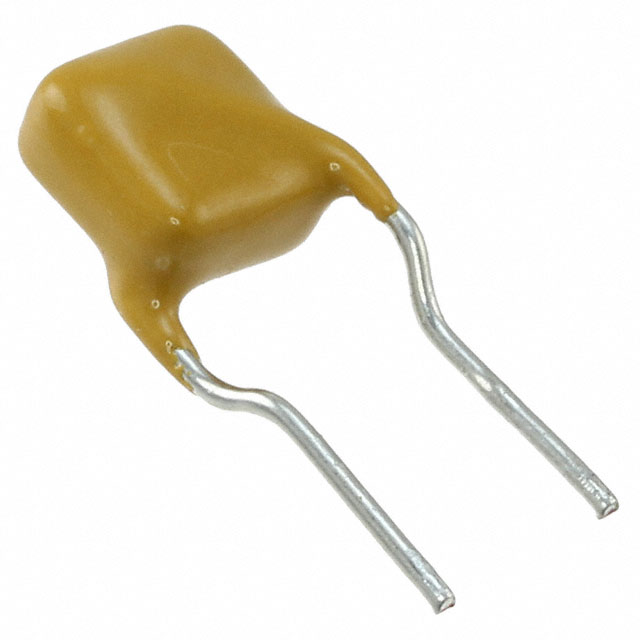

Image is for reference only , See Product Specifications
MF-RHT100-2
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-RHT100-2 |
| Description: | 1.0A HIGH-TEMPERATURE PTC RESETT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-RHT |
| Ratings | AEC-Q200 |
| Approvals | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 5.2s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 30V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Base Part Number | MF-RHT |
| Size / Dimension | 0.382" L x 0.118" W (9.70mm x 3.00mm) |
| Current - Trip (It) | 1.8A |
| Height - Seated (Max) | 0.535" (13.60mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 1A |
| Resistance - Initial (Ri) (Min) | 180 mOhms |
| Resistance - Post Trip (R1) (Max) | 430 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.35 | $0.34 | $0.34 |
