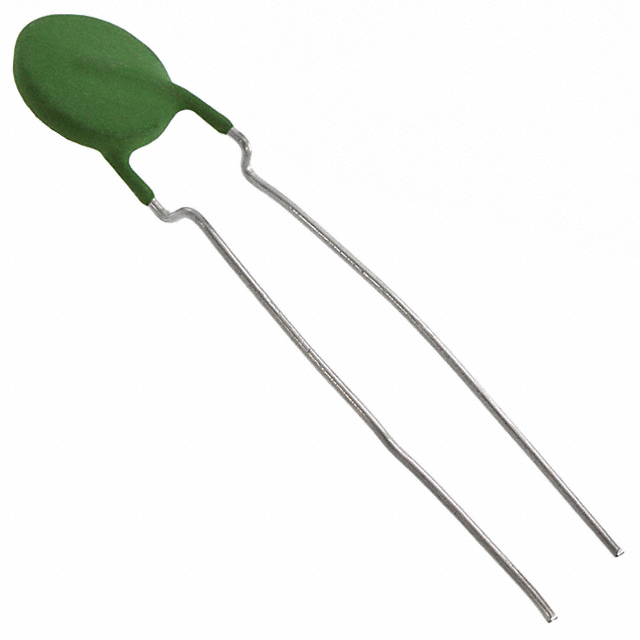

Image is for reference only , See Product Specifications
MF-RG1100-AP
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-RG1100-AP |
| Description: | PTC RESET FUSE 16V 11A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-RG |
| Ratings | AEC-Q200 |
| Approvals | cURus |
| Packaging | Tape & Box (TB) |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 7s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Base Part Number | MF-RG |
| Size / Dimension | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Current - Trip (It) | 18.7A |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 11A |
| Resistance - Initial (Ri) (Min) | 3.7 mOhms |
| Resistance - Post Trip (R1) (Max) | 8.9 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.77 | $0.75 | $0.74 |
