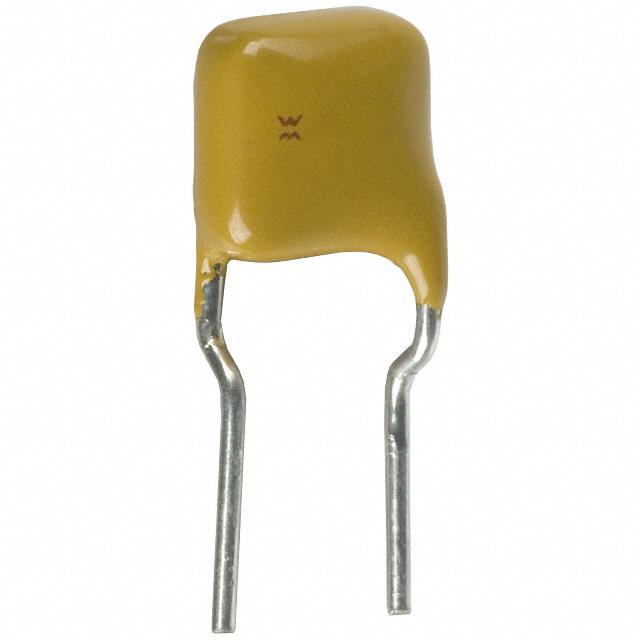

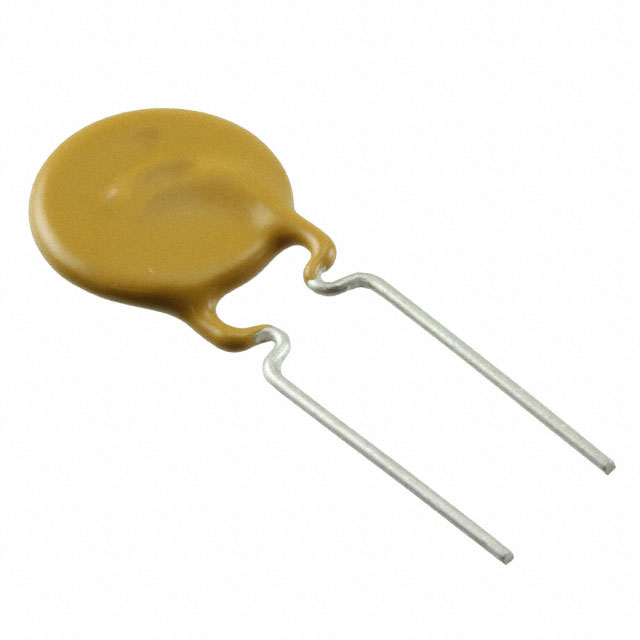

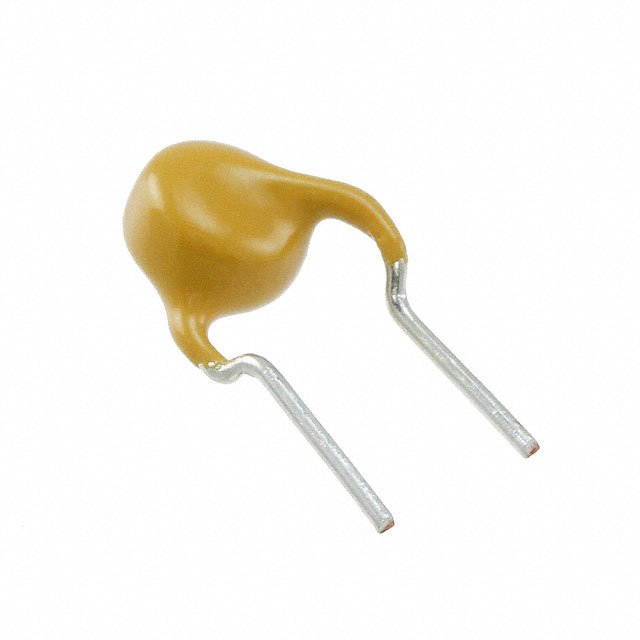

Image is for reference only , See Product Specifications
MF-R700
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-R700 |
| Description: | PTC RESET FUSE 30V 7A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-R |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.402" (10.20mm) |
| Time to Trip | 17.5s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 30V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.870" L x 0.118" W (22.10mm x 3.00mm) |
| Current - Trip (It) | 14A |
| Height - Seated (Max) | 1.173" (29.80mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 7A |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 30 mOhms |
In Stock 3125 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.74 | $0.73 | $0.71 |
