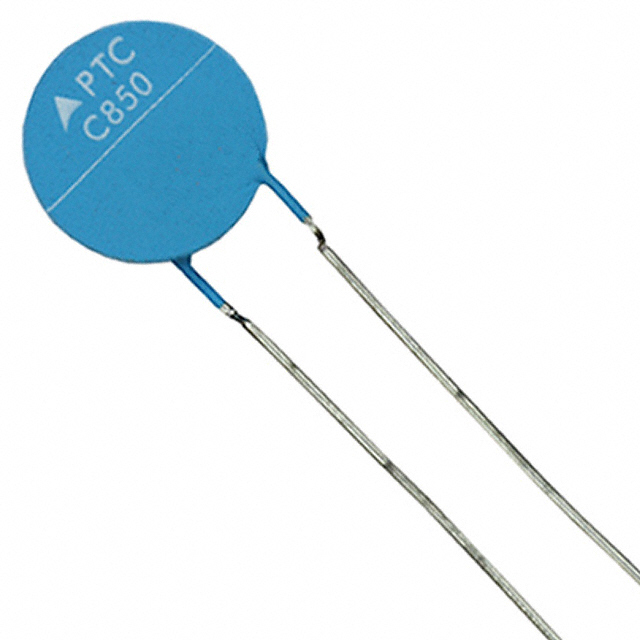

Image is for reference only , See Product Specifications
MF-R075/90-0
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-R075/90-0 |
| Description: | PTC RESET FUSE 90V 750MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-R/90 |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 60s |
| Current - Max | 10A |
| Mounting Type | Through Hole |
| Voltage - Max | 90V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Base Part Number | MF-R075 |
| Size / Dimension | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) |
| Current - Trip (It) | 1.5A |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750mA |
| Resistance - Initial (Ri) (Min) | 370 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.65 Ohms |
In Stock 8585 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.60 | $0.59 | $0.58 |
