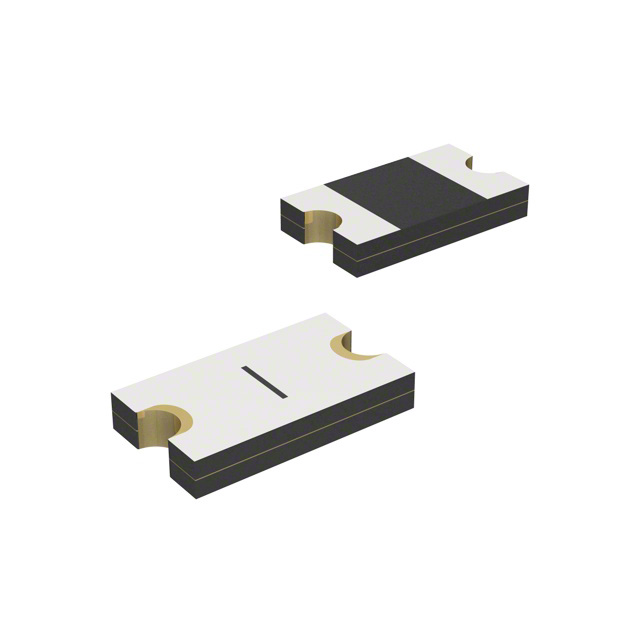

Image is for reference only , See Product Specifications
MF-LSMF185/33X-2
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MF-LSMF185/33X-2 |
| Description: | PTC RESET FUSE 33V 1.85A 2920 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | Multifuse®, MF-LSMF |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 2.5s |
| Current - Max | 40A |
| Mounting Type | Surface Mount |
| Voltage - Max | 33V |
| Package / Case | 2920 (7351 Metric), Concave |
| Thickness (Max) | 0.063" (1.60mm) |
| Base Part Number | MF-LSMF |
| Size / Dimension | 0.289" L x 0.202" W (7.36mm x 5.12mm) |
| Current - Trip (It) | 3.7A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 1.85A |
| Resistance - Initial (Ri) (Min) | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 150 mOhms |
In Stock 47485 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
