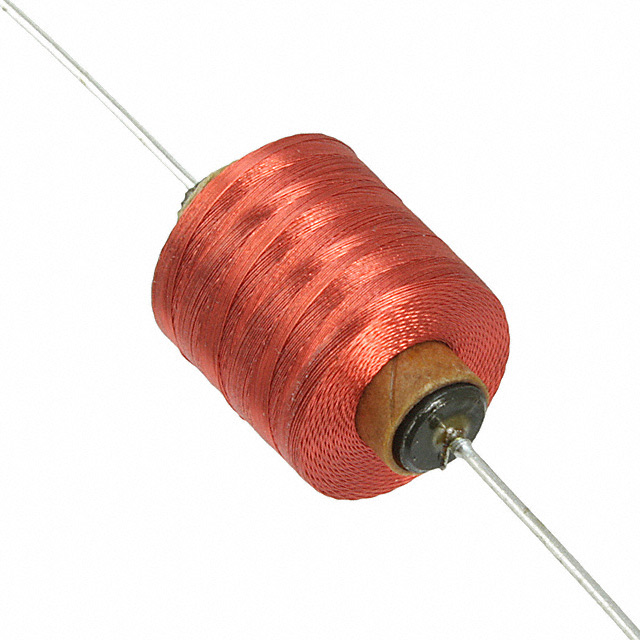

Image is for reference only , See Product Specifications
70F504AI-RC
| Manufacturers: | Bourns, Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 70F504AI-RC |
| Description: | FIXED IND 500UH 91MA 18 OHM TH |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Bourns, Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | 70F |
| Ratings | - |
| Q @ Freq | 49 @ 790kHz |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 500µH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Material - Core | Iron |
| Base Part Number | 70F |
| Size / Dimension | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) |
| DC Resistance (DCR) | 18Ohm Max |
| Current - Saturation | - |
| Current Rating (Amps) | 91mA |
| Height - Seated (Max) | - |
| Operating Temperature | -55°C ~ 105°C |
| Supplier Device Package | Axial |
| Frequency - Self Resonant | 1.8MHz |
| Inductance Frequency - Test | 790kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
