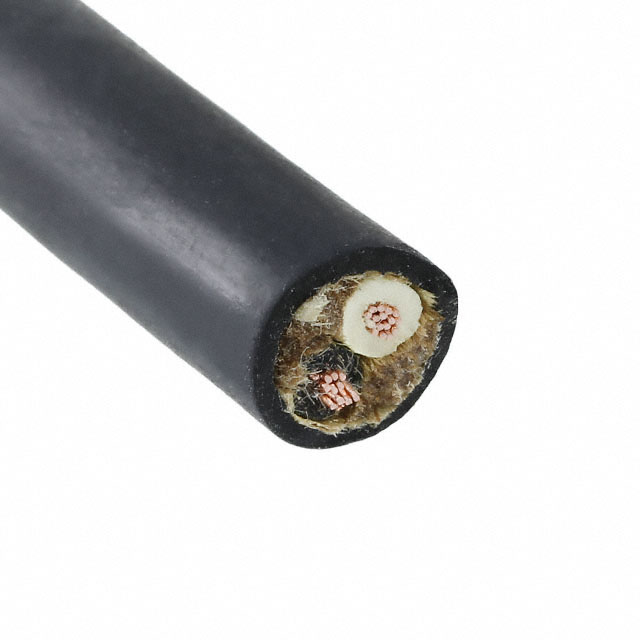

Image is for reference only , See Product Specifications
6541FE 877U500
| Manufacturers: | Belden Inc. |
|---|---|
| Product Category: | Multiple Conductor Cables |
| Data Sheet: | 6541FE 877U500 |
| Description: | CBL 2PR 22AWG FLRST SHLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Belden Inc. |
| Product Category | Multiple Conductor Cables |
| Usage | Alarm, Security, Sound |
| Length | 500.0' (152.4m) |
| Series | - |
| Ratings | UL Style CMP |
| Voltage | 300V |
| Features | - |
| Cable Type | Multi-Pair |
| Wire Gauge | 22 AWG |
| Part Status | Active |
| Shield Type | Foil |
| Jacket Color | Natural |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Conductor Strand | 7/30 |
| Conductor Material | Copper, Bare |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Number of Conductors | 4 (2 Pair) |
| Operating Temperature | 0°C ~ 75°C |
| Jacket (Insulation) Diameter | 0.203" (5.16mm) |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.0150" (0.381mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $214.23 | $209.95 | $205.75 |
