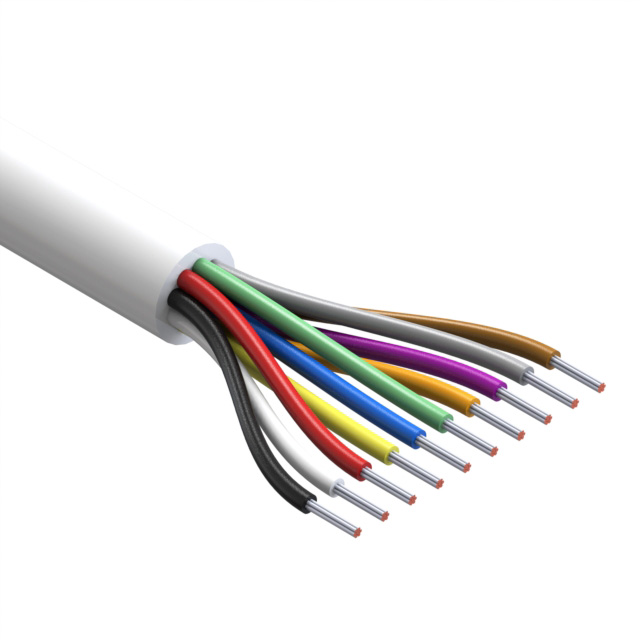

Image is for reference only , See Product Specifications
5300FE 0061000
| Manufacturers: | Belden Inc. |
|---|---|
| Product Category: | Multiple Conductor Cables |
| Data Sheet: | 5300FE 0061000 |
| Description: | CBL 2COND 18AWG FRPVC SHLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Belden Inc. |
| Product Category | Multiple Conductor Cables |
| Usage | Security, Sound |
| Length | 1000.0' (304.8m) |
| Series | - |
| Ratings | UL Style CMR |
| Voltage | 300V |
| Features | Drain Wire, Rip Cord |
| Cable Type | Multi-Conductor |
| Wire Gauge | 18 AWG |
| Part Status | Active |
| Shield Type | Foil |
| Jacket Color | Blue |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Conductor Strand | 7/26 |
| Conductor Material | Copper, Tinned |
| Conductor Insulation | Polypropylene (PP) |
| Number of Conductors | 2 |
| Operating Temperature | -20°C ~ 75°C |
| Jacket (Insulation) Diameter | 0.162" (4.11mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.0170" (0.432mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $237.42 | $232.67 | $228.02 |
