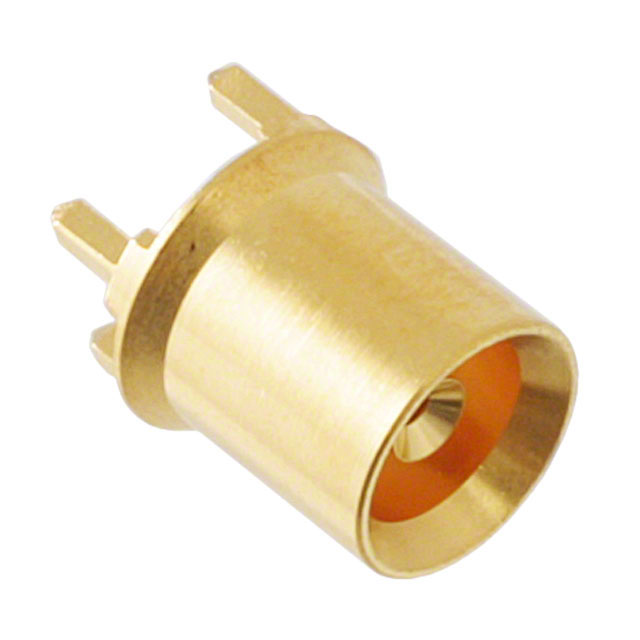

Image is for reference only , See Product Specifications
122415
| Manufacturers: | Amphenol RF Division |
|---|---|
| Product Category: | Coaxial Connectors (RF) |
| Data Sheet: | 122415 |
| Description: | CONN TNC JACK STR 50 OHM SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Amphenol RF Division |
| Product Category | Coaxial Connectors (RF) |
| Series | - |
| Features | - |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50Ohm |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-8X, Belden 9258, LMR-240 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.18dB |
| Voltage Rating | 500V |
| Connector Style | TNC |
| Frequency - Max | 11GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | - |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
In Stock 97 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.03 | $6.89 | $6.75 |
