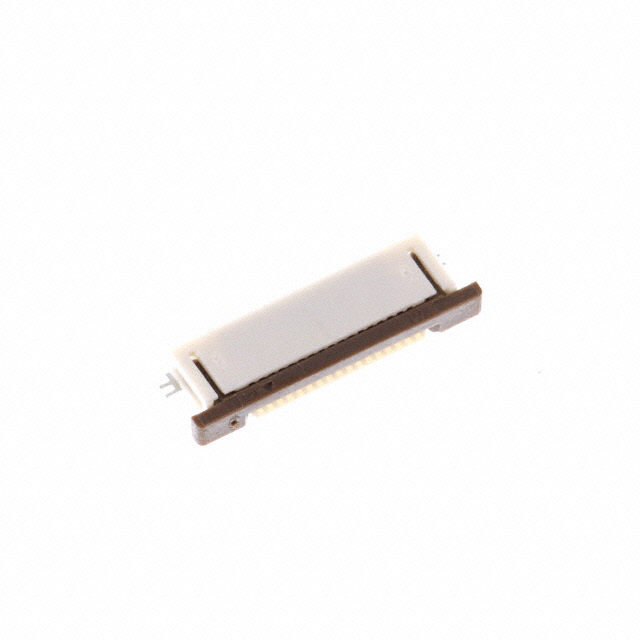

Image is for reference only , See Product Specifications
SFW16S-2STE1LF
| Manufacturers: | Amphenol ICC (FCI) |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | SFW16S-2STE1LF |
| Description: | CONN FFC FPC VERT 16POS 1MM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Amphenol ICC (FCI) |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.039" (1.00mm) |
| Series | SFW |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Termination | Solder |
| Housing Color | Brown |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Actuator Color | Black |
| Cable End Type | Straight, Tapered |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 100V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Actuator Material | Thermoplastic, Glass Filled |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.209" (5.30mm) |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 16 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 839 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.99 | $0.97 | $0.95 |
