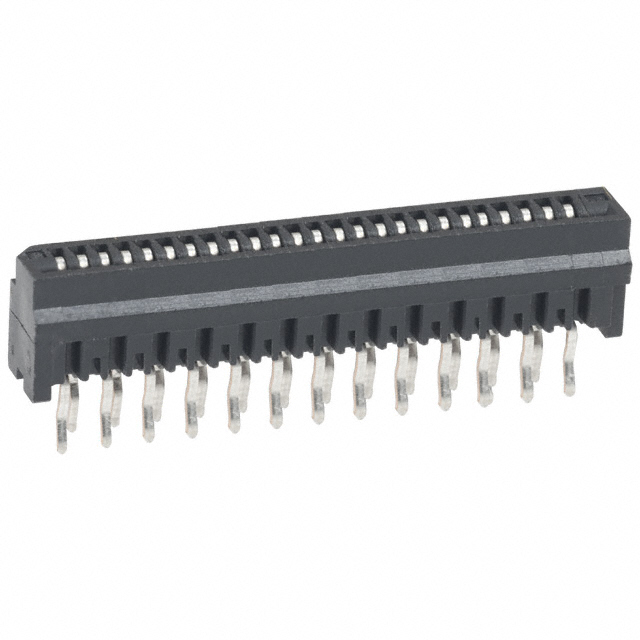

Image is for reference only , See Product Specifications
HLW24S-6C7LF
| Manufacturers: | Amphenol ICC (FCI) |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | HLW24S-6C7LF |
| Description: | CONN CIC VERT 24POS 1.00MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Amphenol ICC (FCI) |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.039" (1.00mm) |
| Series | HLW-S |
| Features | - |
| Packaging | Tray |
| Part Status | Active |
| Termination | Kinked Pin |
| Housing Color | Black |
| Mating Cycles | 5 |
| Mounting Type | Through Hole |
| Actuator Color | - |
| Cable End Type | Tapered |
| Contact Finish | Tin |
| Flat Flex Type | CIC |
| Voltage Rating | 100V |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Actuator Material | - |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.232" (5.90mm) |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 24 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.09 | $0.09 | $0.09 |
