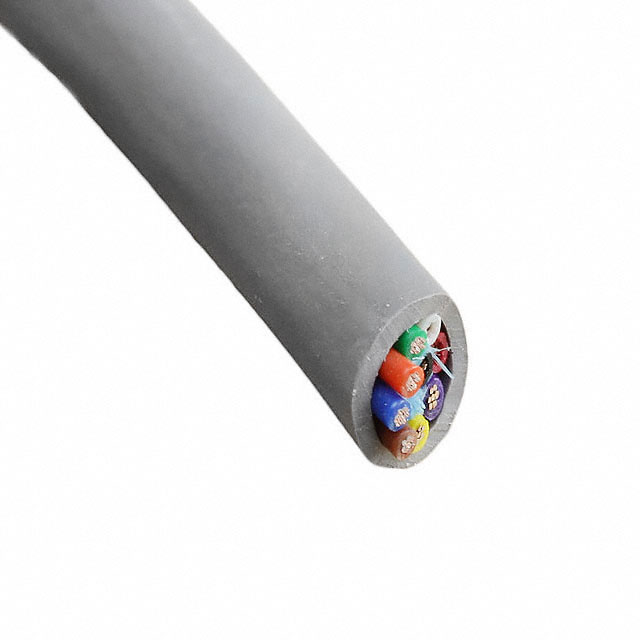

Image is for reference only , See Product Specifications
6014L SL002
| Manufacturers: | Alpha Wire |
|---|---|
| Product Category: | Multiple Conductor Cables |
| Data Sheet: | 6014L SL002 |
| Description: | MULTI-PAIR 18COND 22AWG 500' |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alpha Wire |
| Product Category | Multiple Conductor Cables |
| Usage | - |
| Length | 500.0' (152.4m) |
| Series | - |
| Ratings | - |
| Voltage | 300V |
| Features | Drain Wire |
| Cable Type | Multi-Pair |
| Wire Gauge | 22 AWG |
| Part Status | Active |
| Shield Type | Foil |
| Jacket Color | Slate |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Conductor Strand | 7/28 |
| Conductor Material | Copper, Tinned |
| Conductor Insulation | Low Smoke Zero Halogen (LSZH) |
| Number of Conductors | 18 (9 Pair Twisted) |
| Operating Temperature | -20°C ~ 75°C |
| Jacket (Insulation) Diameter | 0.441" (11.20mm) |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Jacket (Insulation) Thickness | 0.0250" (0.635mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2,124.35 | $2,081.86 | $2,040.23 |
Request Quote
