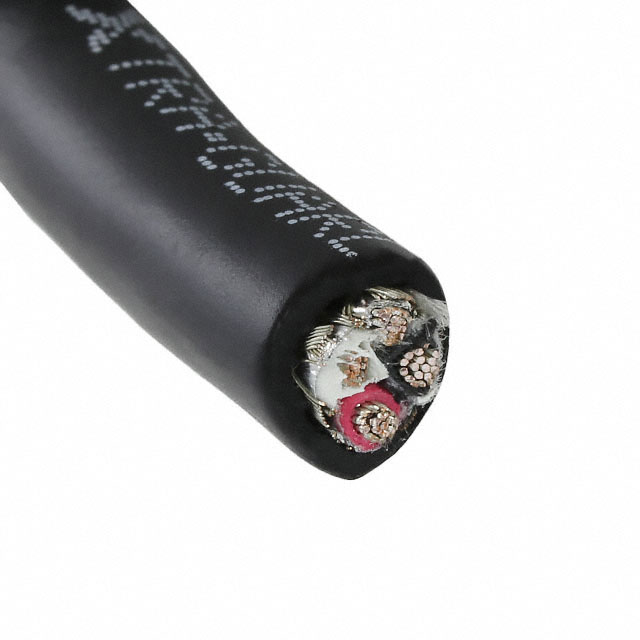

Image is for reference only , See Product Specifications
58809 SL001
| Manufacturers: | Alpha Wire |
|---|---|
| Product Category: | Multiple Conductor Cables |
| Data Sheet: | 58809 SL001 |
| Description: | MULTI-PAIR 18COND 24AWG 1000' |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alpha Wire |
| Product Category | Multiple Conductor Cables |
| Usage | - |
| Length | 1000.0' (304.8m) |
| Series | - |
| Ratings | - |
| Voltage | 150V |
| Features | Drain Wire |
| Cable Type | Multi-Pair |
| Wire Gauge | 24 AWG |
| Part Status | Active |
| Shield Type | Foil |
| Jacket Color | Slate |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Conductor Strand | 7/32 |
| Conductor Material | Copper, Tinned |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Number of Conductors | 18 (9 Pair Twisted) |
| Operating Temperature | -25°C ~ 125°C |
| Jacket (Insulation) Diameter | 0.256" (6.50mm) |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.0110" (0.279mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4,899.26 | $4,801.27 | $4,705.25 |
Request Quote
