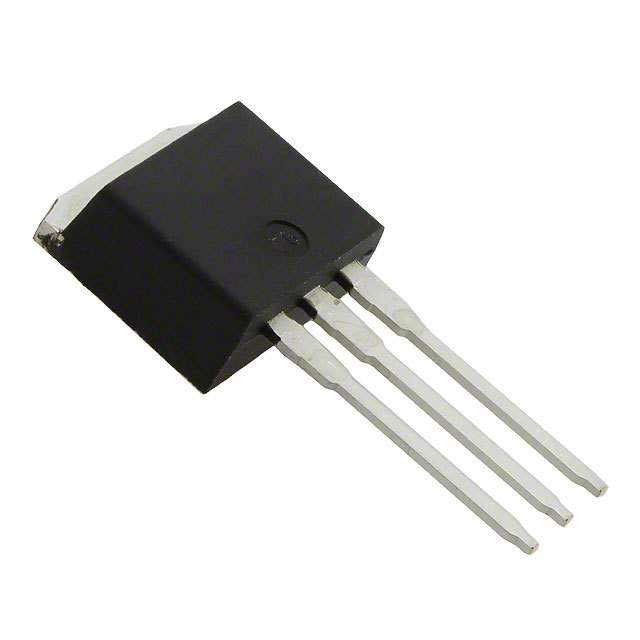

Image is for reference only , See Product Specifications
AOW25S65
| Manufacturers: | Alpha & Omega Semiconductor Inc. |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | AOW25S65 |
| Description: | MOSFET N-CH 650V 25A TO262 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | aMOS™ |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Not For New Designs |
| Mounting Type | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 12.5A, 10V |
| Power Dissipation (Max) | 357W (Tc) |
| Supplier Device Package | TO-262 |
| Gate Charge (Qg) (Max) @ Vgs | 26.4nC @ 10V |
| Drain to Source Voltage (Vdss) | 650V |
| Input Capacitance (Ciss) (Max) @ Vds | 1278pF @ 100V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.71 | $1.68 | $1.64 |
