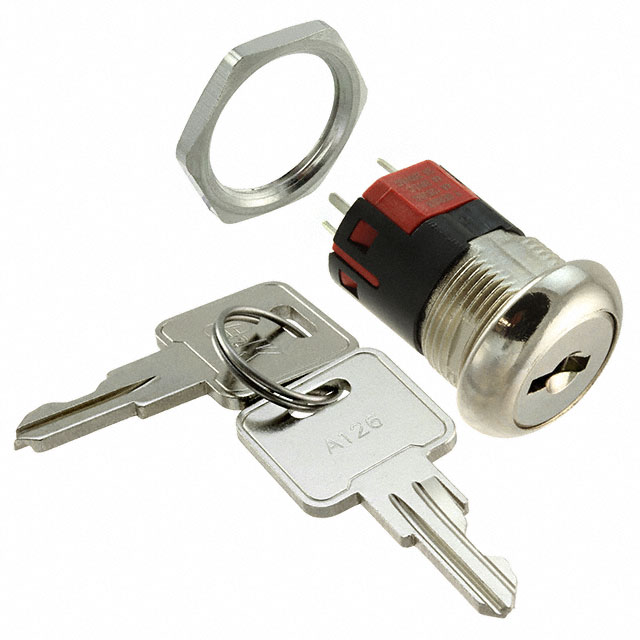

Image is for reference only , See Product Specifications
LK6RGB126M3
| Manufacturers: | APEM Inc. |
|---|---|
| Product Category: | Keylock Switches |
| Data Sheet: | LK6RGB126M3 |
| Description: | SWITCH KEYLOCK 2POS SPDT 4A 125V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | APEM Inc. |
| Product Category | Keylock Switches |
| Series | LK |
| Circuit | SPDT |
| Features | - |
| Part Status | Active |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | 6,000 Cycles |
| Switch Function | On-On |
| Contact Material | Copper Alloy |
| Termination Style | Solder Lug |
| Depth Behind Flange | 27.55mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 28V |
| Current Rating (Amps) | 4A (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
| Key Removable Positions | All |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $14.69 | $14.40 | $14.11 |
