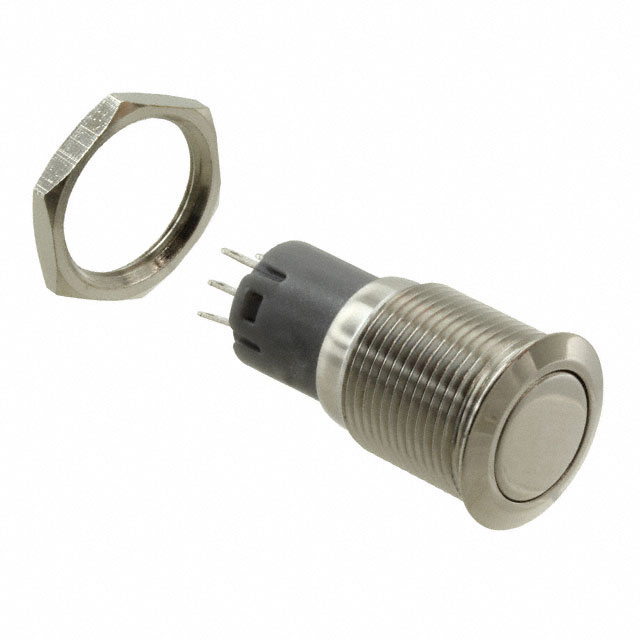

Image is for reference only , See Product Specifications
ICP3Z1AD2
| Manufacturers: | APEM Inc. |
|---|---|
| Product Category: | Pushbutton Switches |
| Data Sheet: | ICP3Z1AD2 |
| Description: | SWITCH PUSH SPST-NO 5A 48V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | APEM Inc. |
| Product Category | Pushbutton Switches |
| Type | Standard |
| Series | IC |
| Circuit | SPST-NO |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Part Status | Active |
| Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - AC | 48V |
| Voltage Rating - DC | 28V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 500mA (AC), 5A (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 13.60mm Dia |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
In Stock 73 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $18.40 | $18.03 | $17.67 |
