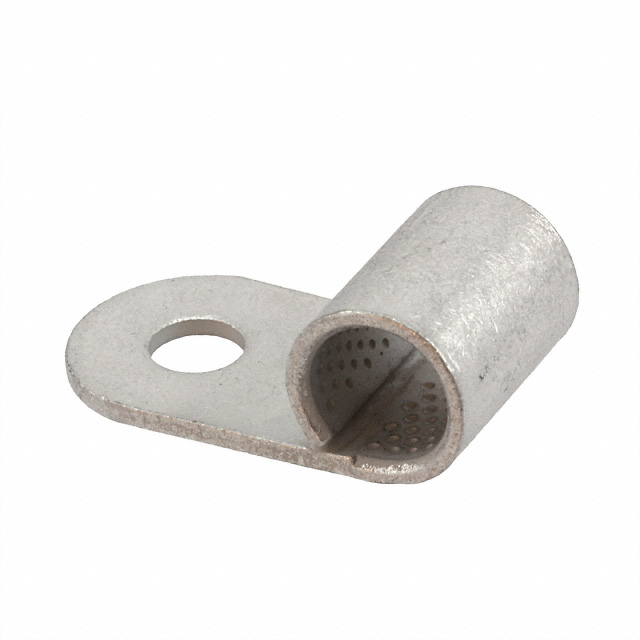

Image is for reference only , See Product Specifications
MVU10-38RX-BOTTLE
| Manufacturers: | 3M |
|---|---|
| Product Category: | Terminals - Ring Connectors |
| Data Sheet: | MVU10-38RX-BOTTLE |
| Description: | CONN RING CIRC 10-12AWG 3/8 50PC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | 3M |
| Product Category | Terminals - Ring Connectors |
| Color | Yellow |
| Series | Scotchlok™ |
| Features | - |
| Packaging | Bulk |
| Thickness | 0.040" (1.02mm) |
| Insulation | Insulated |
| Wire Gauge | 10-12 AWG |
| Part Status | Active |
| Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud |
| Terminal Type | Circular |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Length - Overall | 1.260" (32.00mm) |
| Insulation Diameter | 0.250" (6.35mm) |
| Width - Outer Edges | 0.540" (13.72mm) |
| Material - Insulation | Vinyl |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $20.62 | $20.21 | $19.80 |
