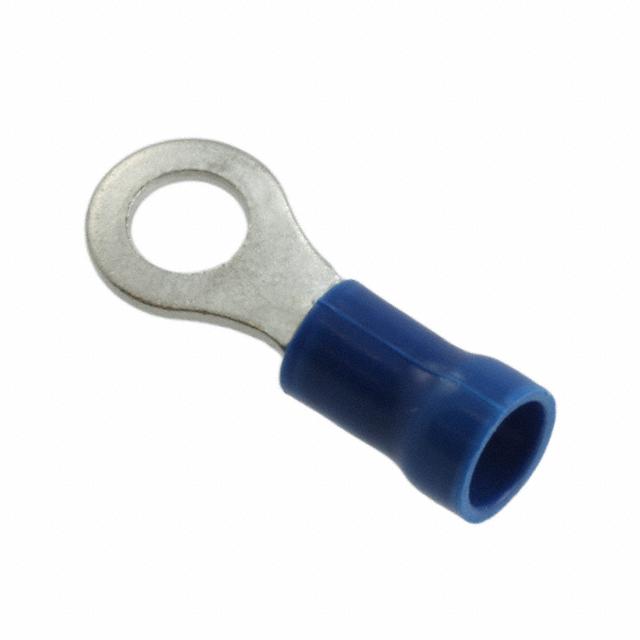

Image is for reference only , See Product Specifications
94732
| Manufacturers: | 3M |
|---|---|
| Product Category: | Terminals - Ring Connectors |
| Data Sheet: | 94732 |
| Description: | CONN RING CIR 14-16AWG 3/8 1=1PC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | 3M |
| Product Category | Terminals - Ring Connectors |
| Color | Blue |
| Series | Highland™ |
| Features | - |
| Packaging | Bulk |
| Thickness | 0.030" (0.76mm) |
| Insulation | Insulated |
| Wire Gauge | 14-16 AWG |
| Part Status | Active |
| Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud |
| Terminal Type | Circular |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Length - Overall | 1.140" (28.96mm) |
| Insulation Diameter | 0.170" (4.32mm) |
| Width - Outer Edges | 0.560" (14.22mm) |
| Material - Insulation | Polyamide (PA), Nylon |
In Stock 971 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.50 | $0.49 | $0.48 |
