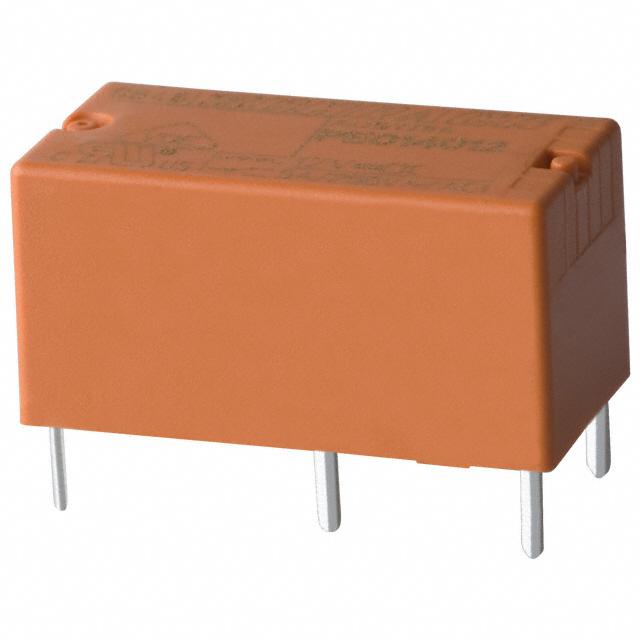

Image is for reference only , See Product Specifications
G5RL-1-E-HR DC12
| Manufacturers: | Omron Electronics Inc-EMC Div |
|---|---|
| Product Category: | Power Relays, Over 2 Amps |
| Data Sheet: | G5RL-1-E-HR DC12 |
| Description: | RELAY GEN PURPOSE SPDT 16A 12V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Product Category | Power Relays, Over 2 Amps |
| Series | G5RL |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 33.3mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15ms |
| Release Time | 5ms |
| Mounting Type | Through Hole |
| Coil Insulation | - |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 250VAC, 24VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 16A |
In Stock 1128 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.91 | $3.83 | $3.76 |
